| Production Line: |
sw24 |
| Pressure Range (bar): |
20 bar - 50 bar
|
| Pressure Range (PSI): |
290,08 psi - 725,2 psi
|
| Pressure Range (MPa): |
2 MPa - 5 MPa
|
| Contact Load Capacity: |
42 V / 4 A / 100 VA |
| Contact Material: |
Silber |
| Product Design: |
0118 - AMP Junior Timer, 0,1 - 50 bar |
| Integrated: |
yes
|
| IP Rating: |
IP65, IPx4K |
| Adjustable: |
no
|

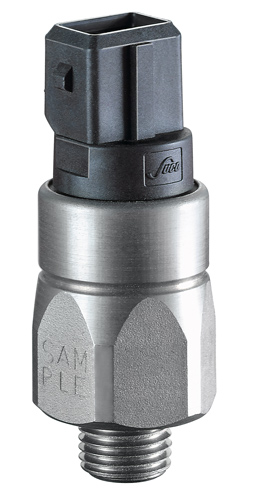

| Product Type: |
Diaphragm pressure switch |
| Overpressure Safety (bar): |
300 bar |
| Overpressure Safety (MPa): |
30 MPa |
| Overpressure Safety (PSI): |
4350 psi |
| Electrical Connection: |
AMP Junior Timer |
| Switching Function: |
Normally open contacts (NO) |
| Connection: |
G 1/4 |
| Hysteresis: |
Average value approx. 5 - 30% (not adjustable) |
