| Production Line: |
sw24 |
| Pressure Range (bar): |
50 bar - 150 bar
|
| Pressure Range (PSI): |
725,2 psi - 2175,6 psi
|
| Pressure Range (MPa): |
5 MPa - 15 MPa
|
| Contact Load Capacity: |
42 V / 4 A / 100 VA |
| Contact Material: |
Silber |
| Product Design: |
0125 - M12 x 1, 0,1 - 50 bar |
| Integrated: |
yes
|
| IP Rating: |
IP67 |
| Adjustable: |
no
|
| Product Type: |

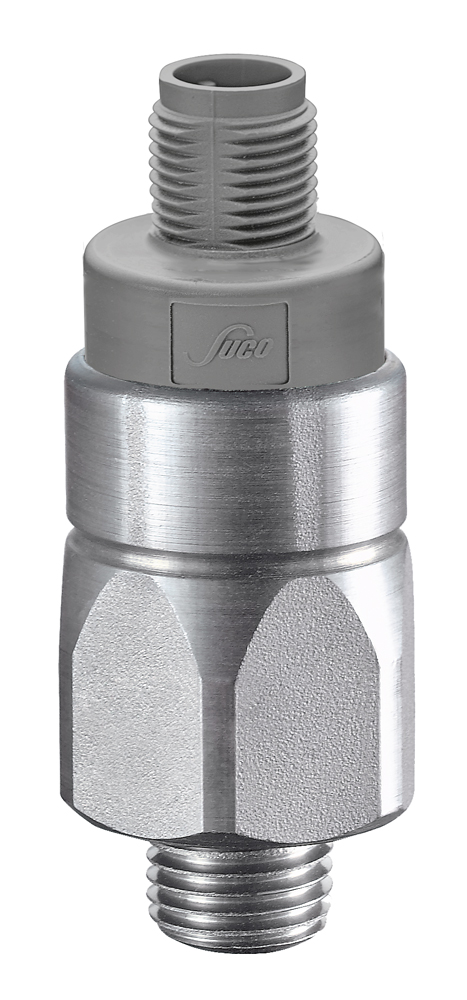

Piston pressure switch |
| Overpressure Safety (bar): |
600 bar |
| Overpressure Safety (MPa): |
60 MPa |
| Overpressure Safety (PSI): |
8700 psi |
| Electrical Connection: |
M 12x1 DIN EN 61076-2-LF (PIN 1+4) |
| Switching Function: |
Normally open contacts (NO) |
| Connection: |
M 12x1,5 zyl. |
| Hysteresis: |
Average value approx. 5 - 30% (not adjustable) |
