| Production Line: |
sw27 |
| Pressure Range (bar): |
10 bar - 50 bar
|
| Pressure Range (PSI): |
145,04 psi - 725,2 psi
|
| Pressure Range (MPa): |
1 MPa - 5 MPa
|
| Contact Load Capacity: |
42 VAC / 4 A / AC12 |
| Contact Material: |
Silber |
| Product Design: |
0170 - Verzinkter Stahl, 42 VAC / 0,3 - 100 bar |
| Integrated: |
no
|
| IP Rating: |
IP00 |
| Adjustable: |
no
|
| Product Type: |

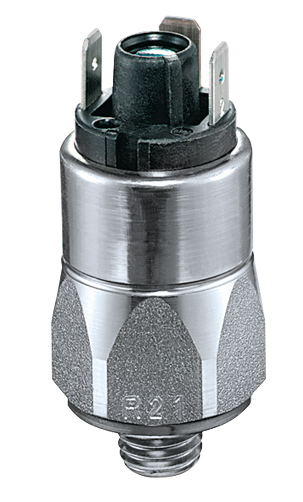

Diaphragm pressure switch |
| Overpressure Safety (bar): |
400 bar |
| Overpressure Safety (MPa): |
40 MPa |
| Overpressure Safety (PSI): |
5800 psi |
| Electrical Connection: |
Steckanschluss |
| Switching Function: |
Change over contacts (SPDT) |
| Connection: |
G 1/4 |
| Hysteresis: |
Average value approx. 10 - 30% (adjustable at factory) |
