| Production Line: |
sw27 |
| Pressure Range (bar): |
0,3 bar - 1,5 bar
|
| Pressure Range (PSI): |
4,3512 psi - 21,756 psi
|
| Pressure Range (MPa): |
0,03 MPa - 0,15 MPa
|
| Contact Load Capacity: |
24 V / 50 mA / 0,5 VA |
| Contact Material: |
Gold |
| Product Design: |
0190 - Verzinkter Stahl, 250 VAC / 0,3 - 100 bar |
| Integrated: |
no
|
| IP Rating: |
IP00 |
| Adjustable: |
no
|

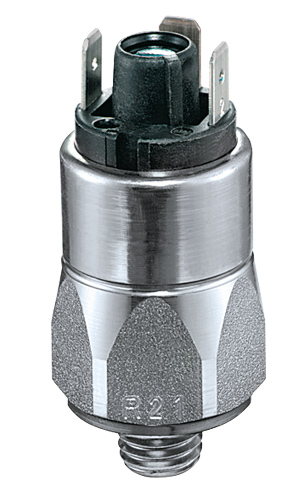

| Product Type: |
Diaphragm pressure switch |
| Overpressure Safety (bar): |
100 bar |
| Overpressure Safety (MPa): |
10 MPa |
| Overpressure Safety (PSI): |
1450,4 psi |
| Electrical Connection: |
Steckanschluss |
| Switching Function: |
Change over contacts (SPDT) |
| Connection: |
M 10x1 keg. |
| Hysteresis: |
Average value approx. 10 - 30% (adjustable at factory) |
